High Strength CNC Milled Bearing Block for Industrial Machinery

High Strength CNC Milled Bearing Block for Industrial Machinery

Brand Name: SINBO
MOQ: 100
Price: 2-20
Payment Terms: L/C,D/A,D/P,MoneyGram,Western Union,T/T
Detail Information
Place of Origin:
China
Certification:
ISO9001,IATF16949
Processing Method:
CNC Milling
Drawing Format:
You Supply Can Be Accepted
Process Method:
CNC Milling
Producing Tolerance:
± 0.01 Mm
Trademark:
BY
Design Software:
CAD, Pro/E, UG, Etc.
Used For:
Industrial Machine Equipment
Inspection:
100% Inspection Before Shipment
Project:
OEM Precision CNC Machining
Using:
Automobile
Type:
Other Machining Services
Materail:
Aluminum, Steel
Weight:
0.1-10kg
Dimension:
As Drawings
Precision:
High Precision Milling Parts
Supply Ability:
100000pcs
Highlight:

CNC Milled Bearing Block

,

Industrial Machinery CNC Milled Bearing Block

,

High Strength CNC Milled Bearing Block

Product Description
High Strength Corrosion Resistant Metal Instrument Housing
Product Specifications
Attribute Value
Processing Method CNC Milling
Drawing Format You Supply Can Be Accepted
Process Method CNC Milling
Producing Tolerance ± 0.01 mm
Trademark BY
Design Software CAD, Pro/E, UG, Etc.
Used For Industrial machine equipment
Inspection 100% Inspection before Shipment
Project OEM precision CNC machining
Using Automobile
Type Other Machining Services
Material Aluminum, Steel
Weight 0.1-10kg
Dimension As drawings
Precision High Precision milling parts
Product Overview

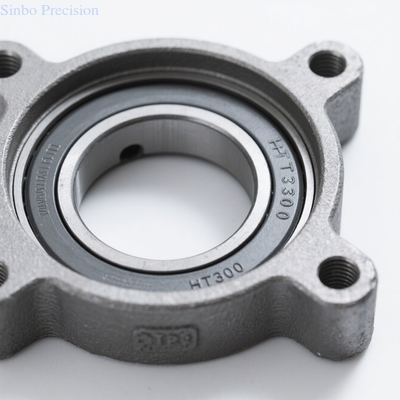

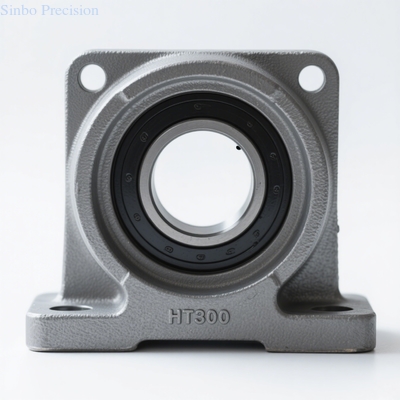

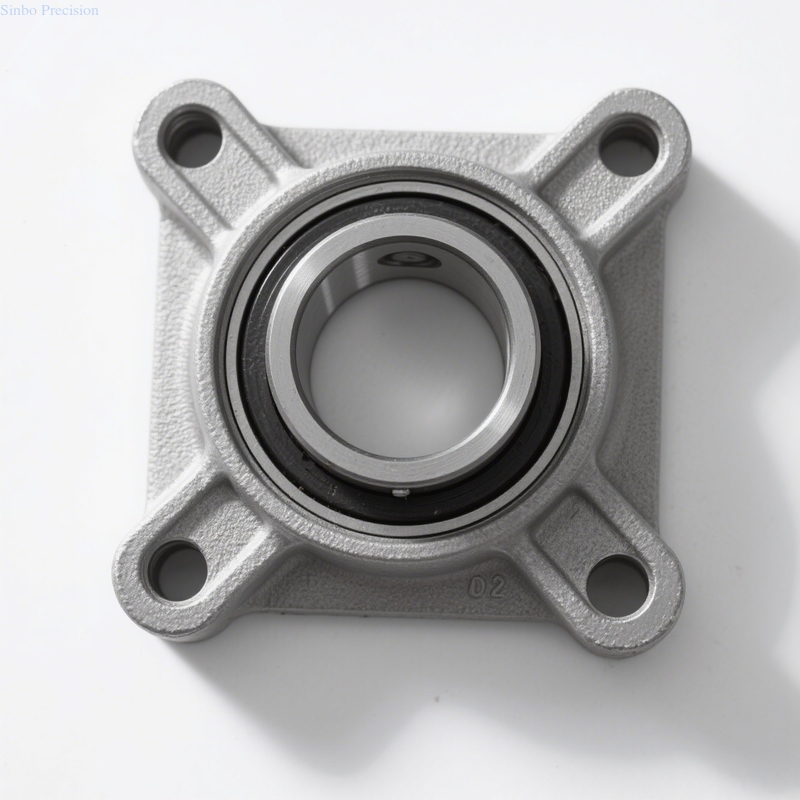

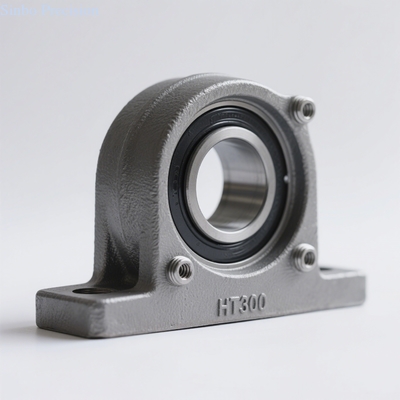

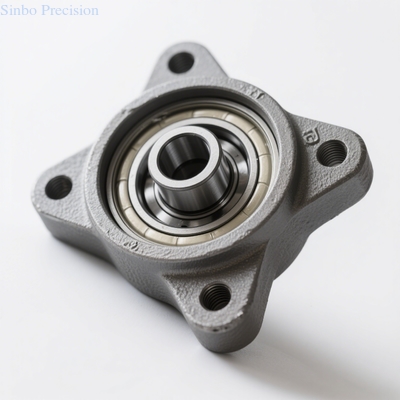

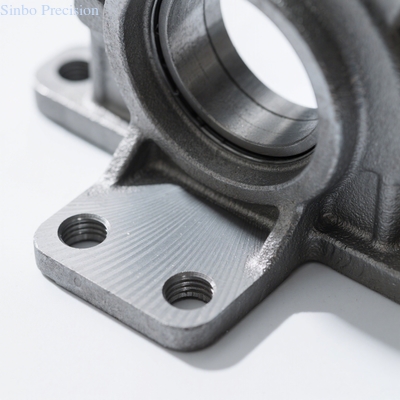

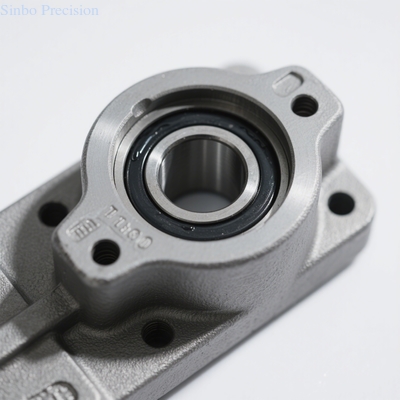

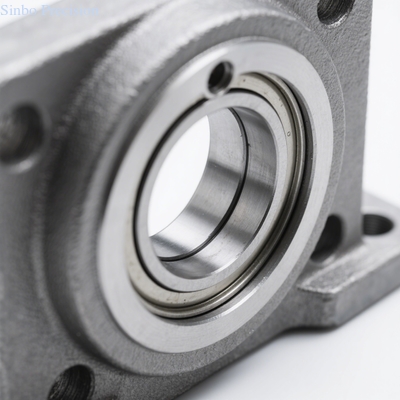

This bearing block is manufactured from HT300 high-strength cast iron through integral casting and precision CNC machining. It offers exceptional structural strength with a compressive strength of 300MPa, providing 25% higher anti-deformation capacity than standard cast iron bearing blocks. The unit can stably withstand radial loads up to 20kN and axial loads up to 8kN during high-speed operation.
Key Features
  • Material: HT300 high-strength cast iron (optional cast steel, ductile iron)
  • Machining precision: Bearing hole IT5 grade, fit clearance ≤0.005mm
  • Anti-rust treatment: Phosphating + painting, passes 72-hour salt spray test
  • Load capacity: Max radial 20kN, max axial 8kN
  • Compatibility: Suitable for deep groove ball bearings, cylindrical roller bearings
Technical Parameters
Parameter Details
Material HT300 cast iron (optional 45# cast steel, QT500 ductile iron)
Compressive strength 300MPa (cast steel version up to 450MPa)
Bearing hole tolerance IT5 grade (aperture error ≤0.012mm)
Surface roughness Ra≤1.6μm (bearing hole Ra≤0.8μm)
Applicable bearing types Deep groove ball bearings, cylindrical roller bearings, self-aligning roller bearings
Mounting hole specifications M10-M20 (customizable)
Applicable temperature range -30℃~120℃
Anti-rust grade 72-hour salt spray test without rust
Applications
This bearing block is widely used in rotating machinery applications. In CNC machine tool spindle systems, it ensures stable operation at speeds up to 8000r/min. It supports 15kW-110kW motor transmission equipment and performs reliably in conveying machinery like belt and chain conveyors. The unit is also suitable for construction machinery such as cranes and excavators, as well as drive shaft support in printing and textile machinery.
Customization Options
We offer comprehensive customization services to meet specific requirements. Customization options include bearing hole diameters (φ10mm-φ200mm), base lengths (50mm-500mm), material selection (45# cast steel or QT500 ductile iron), and various surface treatments (galvanizing, chrome plating, or sandblasted matte). Structural modifications such as double bearing hole design, oil filling holes, or sealing grooves are also available. Sample proofing cycle is 3-5 days with 100% quality inspection during mass production.
Support & Services
Our technical support team provides assistance with installation, troubleshooting, and maintenance. We offer regular maintenance checks, calibration, upgrades, and customization to ensure optimal performance of your CNC milling parts. Our goal is to deliver precision and reliability for all your machining needs.
