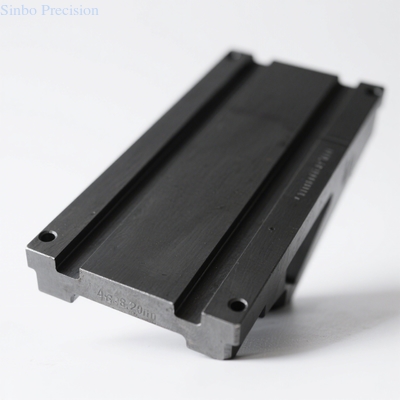

Advanced 2D 3D Drawing Capability High Precision CNC Fixture Base Plate for Sensor Applications

Brand Name:	SINBO
MOQ:	100
Price:	2-20
Payment Terms:	L/C,D/A,D/P,MoneyGram,Western Union,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001，IATF16949

Roughness:

Ra0.4, Ra0.8, Ra1.6, Ra3.2

Tolerance:

±0.01mm

Customized Service:

OEM/ODM

Processing Method:

CNC Milling

Surface Roughness:

According To Customer Needs

Drawing:

2D +3D Drawing/ Scan Samples

Shape:

Customize

Surface Treat:

Polish

Main Prosess:

CNC Turning/CNC Milling Etc

Application Industry:

Sensor

Fine Blanking:

Double Acting

Max Diameter:

400mm

Target Market:

Europe,Asia,USA,Turkey,South America

Specification:

Customized

Temper:

T3-T8

Supply Ability:

100000pcs

Highlight:

Precision CNC Fixture Base Plate

2D 3D CNC Fixture Base Plate

Sensor CNC Fixture Base Plate

Product Description

High Precision Wear Resistant CNC Machining Fixture Base Plate

Product Attributes

Attribute	Value
Roughness	Ra0.4, Ra0.8, Ra1.6, Ra3.2
Tolerance	±0.01mm
Customized Service	OEM/ODM
Processing Method	CNC Milling
Surface Roughness	According to customer needs
Drawing	2D +3D drawing/scan samples
Shape	Customize
Surface Treat	Polish
Main Process	CNC Turning/CNC Milling Etc
Application Industry	Sensor
Fine Blanking	Double Acting
Max Diameter	400mm
Target Market	Europe, Asia, USA, Turkey, South America
Specification	Customized
Temper	T3-T8

Product Description

This fixture base plate is made of 45# steel through integral forging and precision grinding, specially designed for high-precision machining scenarios. It features excellent positioning accuracy with surface flatness ≤0.01mm/m and adjacent positioning hole spacing error ≤0.005mm, ensuring workpiece clamping repeat positioning accuracy up to ±0.003mm - 60% higher than ordinary cast iron base plates.

The plate offers outstanding wear resistance with surface treatment of quenching (hardness 55-58HRC) + nitriding, reducing friction coefficient to 0.15 and extending service life to over 8 years. Its strong structural stability comes from T-type reinforcing rib design with deflection ≤0.02mm/m, capable of withstanding clamping force over 500kg without deformation.

The base plate includes multiple sets of standardized positioning holes (φ6-φ20mm) and T-slots, compatible with various clamping components for quick adaptation to different workpieces without secondary processing.

Key Features

Material: 45# steel (40Cr alloy structural steel optional)
Positioning accuracy: Repeat positioning ±0.003mm
Surface treatment: Quenching + nitriding (hardness 55-58HRC)
Load capacity: ≥500kg clamping force
Compatibility: Suitable for pneumatic/hydraulic clamping components, locating pins, etc.

Technical Parameters

Parameter	Details
Material	45# steel (40Cr optional)
Flatness	≤0.01mm/m
Adjacent hole spacing error	≤0.005mm
Surface hardness	55-58HRC
Friction coefficient	≤0.15
Deflection	≤0.02mm/m
Positioning hole specification	φ6-φ20mm (array distribution)
Size range	200×200mm-1500×1000mm
Weight	20kg-300kg (depending on size)

Applications

This fixture base plate is widely used in precision manufacturing across multiple industries:

Auto parts processing: Provides stable positioning for complex workpieces like engine blocks and gearbox housings
Aerospace parts: Adapts to titanium alloy and aluminum alloy thin-walled parts processing
Mold manufacturing: Used for grinding positioning of templates and cavities
Electronic equipment: Enables multi-station simultaneous clamping for small parts
Medical devices: Reduces product defect rate through high-precision positioning

Customization Options

We provide comprehensive customization services to meet special processing needs:

Size: Customizable from 100×100mm to 2000×1500mm
Materials: 40Cr (improving impact resistance by 20%) or stainless steel
Surface treatment: Chrome plating or blackening options
Structural features: Special-shaped positioning holes, inclined guide grooves, weight reduction holes

Sample proofing cycle is 5-7 days with monthly production capacity of 5000 pieces. Three quality inspections (blank/semi-finished/product) ensure accuracy.

Support and Services

Our Product Technical Support team is dedicated to assisting with any technical questions regarding installation, troubleshooting, or maintenance. We offer regular maintenance checks, calibration, upgrades, and customization options to ensure optimal performance of your CNC milling parts.
