Industrial Robot End Effector High Precision Aluminum Timing Pulley Precision Transmission Solution
| Brand Name: | SINBO |
| MOQ: | 100 |
| Price: | 20 |
| Payment Terms: | L/C,D/A,D/P |
industrial robot end effector
,high precision aluminum timing pulley
,CNC mechanical transmission solution

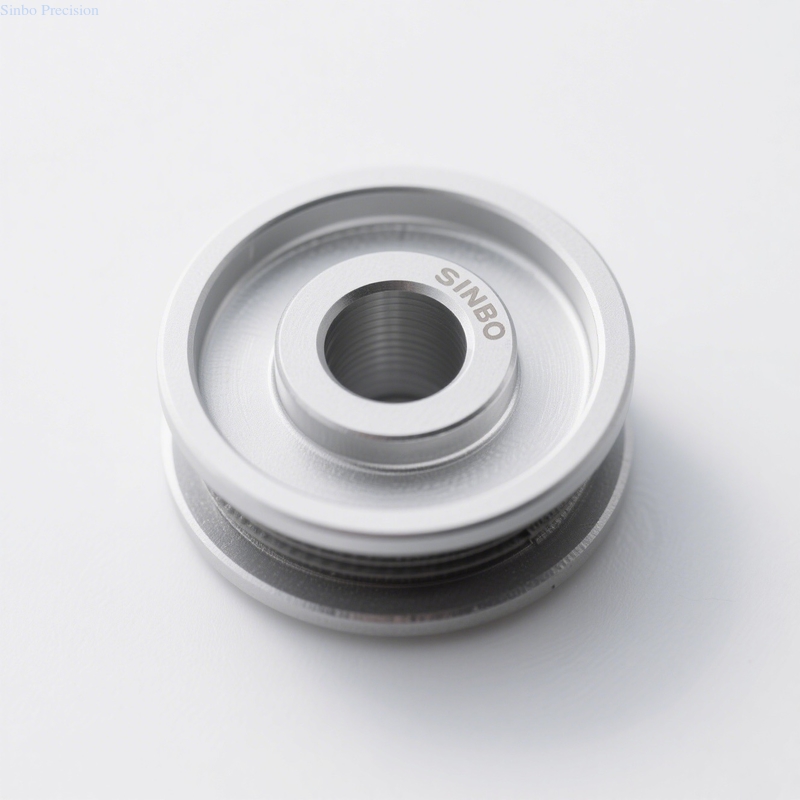

This precision aluminum timing pulley is a high-precision transmission component specifically designed for industrial robot end effectors. Manufactured from high-quality aluminum alloy, it features light weight, high precision, and good wear resistance, ensuring precise synchronous transmission for robot end effectors during operations such as handling, assembly, and loading/unloading. Timing pulley drives offer accurate transmission ratios, no slip, constant speed ratios, enabling precision transmission, smooth operation, vibration damping, and low noise.
- High Transmission Accuracy: Precision CNC machining ensures tooth profile accuracy, accurate transmission ratio with no slip, and positioning accuracy up to ±0.02mm.
- Lightweight Design: Aluminum alloy material significantly reduces weight while ensuring strength, decreasing the robot's end load and improving motion response speed.
- Wear Resistance and Durability: Surface treated (e.g., natural color oxidation) to enhance hardness and wear resistance, extending service life.
- Easy Installation: Features keyway design, also supports keyless installation (no keyway machining required), simplifying installation and maintenance.
- Low Noise Operation: Meshing transmission characteristics ensure smooth and quiet operation, suitable for applications with high environmental requirements.
| Parameter Item | Parameter Value or Description |
|---|---|
| Material | Aluminum Alloy |
| Accuracy Grade | Grade 6 or above |
| Surface Roughness | ≤Ra0.8 |
| Tooth Surface Hardness | ≥HV800 |
| Applicable Belt Type | 3M, 5M, 8M, etc. |
| Nominal Diameter Range | 10mm - 200mm (Customizable) |
| Width Range | 5mm - 50mm (Customizable) |
| Bore Type | Round hole, D-shaped hole, Tapered hole, etc. |
| Surface Treatment | Natural color oxidation, blackening, zinc plating, etc. |
- Industrial Robots: Used for precision transmission in end effectors, ensuring accuracy in grasping, handling, and assembly.
- CNC Machine Tools: Serves as a component in spindle transmission systems, ensuring machining accuracy and stability.
- Semiconductor Manufacturing Equipment: Enables high-precision synchronous motion in cleanroom environments.
- Medical Machinery: Used in precision transmission for medical equipment, such as assembly devices.
- Printing and Packaging Equipment: Provides reliable transmission in automated printing and packaging machinery.
We provide comprehensive customization services based on customer-provided drawings or samples for non-standard orders. This includes different tooth profiles (e.g., trapezoidal, curvilinear), specifications, dimensions, bore and keyway types, and surface treatment requirements. Our technical team offers one-on-one support to ensure the product fully meets your equipment needs.
- Technical Consultation: Professional engineer team provides guidance for transmission solution selection.
- Installation Guidance: Detailed installation instructions and technical support to ensure correct installation and use.
- After-sales Support: Reliable product quality with comprehensive after-sales service and technical support.
- Fast Delivery: Sufficient inventory, quick response for non-standard customization, shortening delivery cycles.
