Service Robot Medicine Drawer Slide Rail High Precision Pharmaceutical Tray Slide Mechanism

MOQ:	100
Price:	10-20
Payment Terms:	L/C,D/A,D/P

Detail Information

Product Description

Detail Information

Test Equipment:

Japan Keyence IM7000

Material Capabilities:

Stainless Steel

Diameter:

0.325inch, 0.13inch

Oem Service:

Acceptable

Size:

Customized

Quality:

100% Inspection

Coaxiality:

±0.01mm

Processing:

CNC Machining,CNC Milling,CNC Turning

Service:

OEM/ODM/Customized/Design

Design Software:

Pro/E, Solidworks, UG

Type:

Drilling,Other Machining Services

Delivery Port:

Shanghai

Parallelism Tolerance:

±0.02mm

Warranty:

1 Year

Casting Method:

Die Casting

Usage:

Industrial

Application:

Machinery

Resistance:

Corrosion Resistant

Original Hardness:

HRC35-42

Precision:

0.001mm

The Tolerance:

+ -0.01mm

Casting Process:

Gravity Casting

Machining Type:

Milling, Grinding, Polishing

Cavity:

Single

Salty Spary:

72h

Material Capabilities:

Aluminum

Supply Ability:

10000

Highlight:

high precision medicine drawer slide rail

pharmaceutical tray slide mechanism

CNC mechanical parts with warranty

Product Description

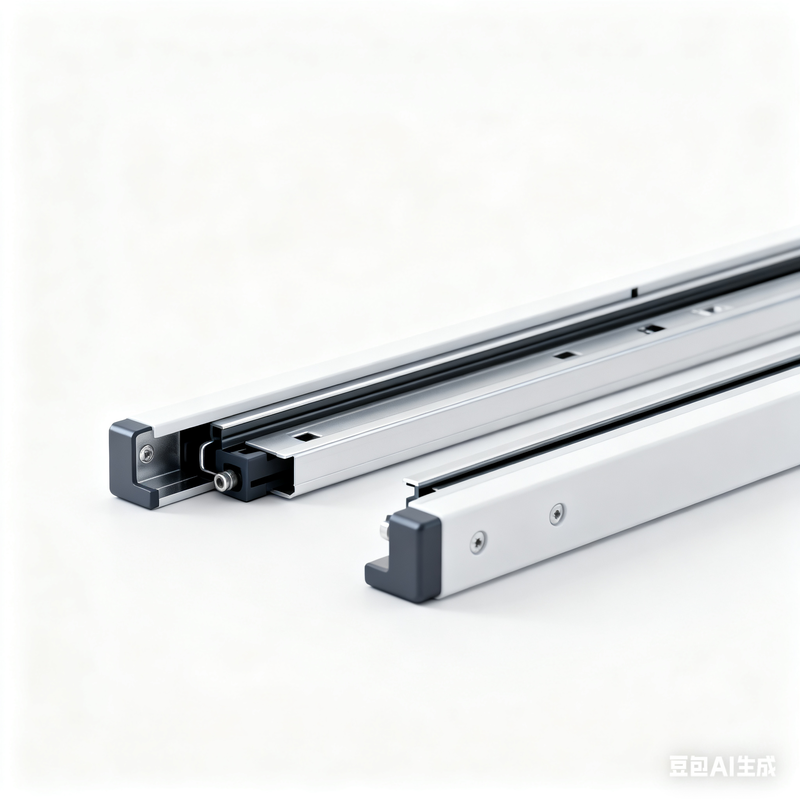

Service Robot Medicine Drawer Slide Rail High Precision Pharmaceutical Tray Slide Mechanism

This Medicine Drawer Slide Rail is a core component of the operation and execution mechanisms in service robots, designed for high-precision applications such as medical and automated equipment. Utilizing planetary roller screw technology, it ensures high-load and high-precision linear motion transmission with an energy conversion efficiency of 81.3%. It features low friction coefficient and high positioning accuracy, making it ideal for frequent and stable medicine management operations.

Key Features

High Precision Positioning: Planetary roller screw structure ensures repeat positioning accuracy ≤0.01mm for accurate medicine handling.
High Load Capacity: Threaded roller design offers superior load capacity compared to ball screws, with max static load of 50kg and dynamic load of 20kg per rail.
Long Life and Reliability: Smooth operation and high durability, service life exceeding 100,000 cycles, maintenance-free design.
Compact Integration: Highly modular structure for easy installation and maintenance in confined robot spaces.
Environmental Adaptability: Corrosion-resistant surface treatment, compatible with medical sterilization processes and cleanroom environments.

Technical Specifications

Parameter	Value
Stroke Length	300mm/400mm/500mm (optional)
Repeat Positioning Accuracy	≤±0.01mm
Max Static Load	50kg
Max Dynamic Load	20kg
Motion Speed	0.1-0.8m/s (adjustable)
Service Life	≥100,000 cycles
Material	Aluminum alloy (body) + Stainless steel (roller)
Drive Method	Electric (integrated servo motor)
Control Interface	CAN bus or RS485
Operating Temperature	-10°C to +60°C

Applications

Medical Service Robots: Automated medicine dispensing in hospital pharmacies and medicine delivery carts.
Laboratory Automation: Precise sliding for sample tube trays and reagent access mechanisms.
Warehouse Logistics Robots: High-precision shelf navigation and item sorting.
Home Service Robots: Medicine management drawer modules for assisting the elderly or disabled.

Customization Services

Customization options include stroke length, load capacity, control interfaces (e.g., EtherCAT compatibility), mounting hole patterns, and surface treatments (e.g., antibacterial coating). OEM/ODM services available. Can be integrated with sensors (e.g., position feedback encoders) for closed-loop control.

Support and Services

Technical documentation, 3D models (STEP format), and integration guides provided.
24-month warranty, lifelong maintenance support.
Remote diagnostics and troubleshooting with 48-hour response.
