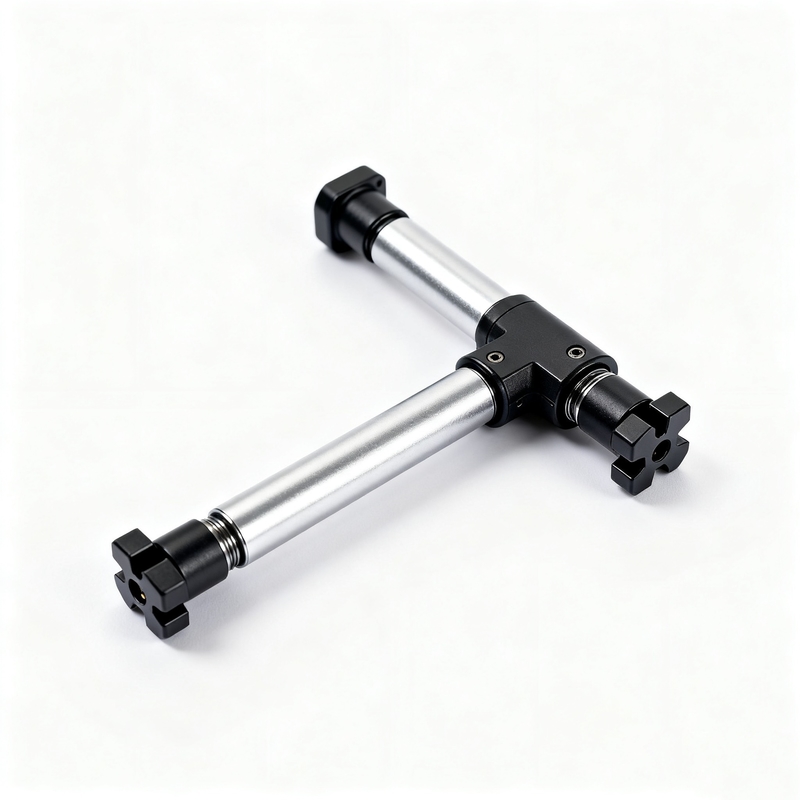

Swing Arm Suspension Axle for Special Robots CNC Machining China Custom
| MOQ: | 100 |
| Price: | 10-20 |
| Payment Terms: | L/C,D/A,D/P |
CNC swing arm suspension axle
,custom robot suspension axle
,CNC machined mechanical parts
The mobility and performance of special robots heavily rely on the precision of their key components - like the swing arm suspension axle. Acting as the robot's "motion joint", this suspension axle, machined from high-quality aluminum alloy via precision CNC machining, ensures stable and reliable operation in demanding environments such as explosion-proof, rescue, and aerospace applications.
Its core value lies in providing robots with extremely high motion accuracy, exceptional load capacity, and outstanding environmental adaptability, making it an indispensable key component in high-end equipment manufacturing.
This Swing Arm Suspension Axle is a core motion component specifically designed for special robots (including explosion-proof, rescue, aerospace, etc.).
It is manufactured from high-strength 7075 aluminum alloy, precisely milled by 5-axis CNC machining centers, and undergoes T6 heat treatment and hard anodizing. Finally, it is strictly inspected by a CMM (Coordinate Measuring Machine) to ensure high dimensional stability, excellent wear and corrosion resistance, and superior fatigue strength.
This component is primarily used to achieve flexible swinging motion and precise positioning for the robot body, effectively absorbing shocks and vibrations from complex terrains. It is key to enhancing the robot's environmental adaptability and motion reliability.
- Extreme Environment Adaptability: The material and surface treatment allow it to perform well in harsh conditions like high/low temperatures, humidity, corrosion, and minor impacts, meeting the stringent requirements of explosion-proof, rescue, and aerospace applications.
- High Load Capacity & Lightweight: Based on 7075 aerospace aluminum and an optimized structural design, it achieves high load capacity (Static Load ≥ 500 kg) while ensuring lightweight, contributing to improved robot endurance and movement efficiency.
- Precision Motion & Low Noise: High machining precision (key dimension tolerance ±0.01mm) and excellent surface finish (Ra ≤ 0.8μm) ensure smooth, precise transmission and very low operating noise.
- High Integration & Reliability: The design considers interfaces with components like servo motors and harmonic drives for easy integration. The monolithic forming process reduces assembly errors and significantly enhances the overall structure's rigidity and reliability.
- Long Life & Low Maintenance: Excellent wear resistance and fatigue resistance grant it a super long service life, reducing the equipment's total lifecycle maintenance costs.
The main technical specifications of the Swing Arm Suspension Axle are as follows:
| Parameter Item | Specification |
|---|---|
| Main Material | 7075 Aluminum Alloy |
| Heat Treatment | T6 Condition |
| Surface Treatment | Hard Anodizing, Thickness 25±5μm |
| Max Static Load | 500 kg |
| Fatigue Life | ≥ 1*10^7 Cycles (@ Rated Load) |
| Key Dimension Tolerance | ±0.01 mm |
| Surface Fineness | Ra ≤ 0.8 μm |
| Operating Temperature | -55℃ ~ +125℃ |
| Weight | 1.85 kg (Depends on the specific model) |
| Customization Support | Supported (Materials, Dimensions, Interfaces) |
This high-precision swing arm suspension axle is primarily used in the following fields:
- Explosion-Proof Robots: Used in inspection and operation robots in flammable and explosive environments such as petroleum, chemical, and gas industries. Its materials and design comply with relevant explosion-proof safety standards.
- Rescue Robots: Used in life detection and supply delivery robots after earthquakes and collapse disasters. Their high reliability and environmental adaptability are crucial.
- Aerospace Robots: Motion actuators for extravehicular maintenance and planetary surface rovers. Requires materials to be lightweight and withstand extreme temperature changes and radiation.
- Special Mobile Platforms: Such as the levee cleaning robot and field mobile robots mentioned in the context, used in key swinging joints of hydraulic telescopic arms or mobile chassis.
We understand that different application scenarios have unique part requirements. We offer flexible customization services:
- Dimension & Structure Customization: Can be tailored based on your installation space, load requirements, and interface forms.
- Material Selection: Besides 7075 aluminum, we also offer CNC machining services for special materials like stainless steel and titanium alloy to meet stronger corrosion resistance or higher strength needs.
- Surface Treatment: Can provide different anodizing colors, Teflon coatings, or other special anti-corrosion treatments as needed.
- Small Batch & Prototyping: We welcome small batch orders and prototyping requests and can provide quick responses.
We are committed to providing comprehensive support to our customers:
- Technical Consultation: Our engineering team can provide selection guidance and technical Q &A.
- Quality Assurance: Strictly adhere to ISO 9001 Quality Management System, providing full-process inspection reports (material certificates, machining accuracy inspection reports, etc.).
- Delivery Guarantee: With rich CNC machining experience and efficient production management, we strive to ensure delivery times.
- After-Sales Support: Provide comprehensive after-sales service. For any product inquiries, we promise a technical response within 24 hours and provide solutions.
