Radiation Resistant Camera Housing for Nuclear Robots CNC Machining China Custom Shielded
| MOQ: | 100 |
| Price: | 10-20 |
| Payment Terms: | L/C,D/A,D/P |
Detail Information
Test Equipment:
Japan Keyence IM7000
Material Capabilities:
Stainless Steel
Diameter:
0.325inch, 0.13inch
Oem Service:
Acceptable
Size:
Customized
Quality:
100% Inspection
Coaxiality:
±0.01mm
Processing:
CNC Machining,CNC Milling,CNC Turning
Service:
OEM/ODM/Customized/Design
Design Software:
Pro/E, Solidworks, UG
Type:
Drilling,Other Machining Services
Delivery Port:
Shanghai
Parallelism Tolerance:
±0.02mm
Warranty:
1 Year
Casting Method:
Die Casting
Delivery Time:
5-9
Supply Ability:
10000
Highlight:
radiation resistant camera housing
,CNC machined nuclear robot shield
,custom shielded camera enclosure
Product Description

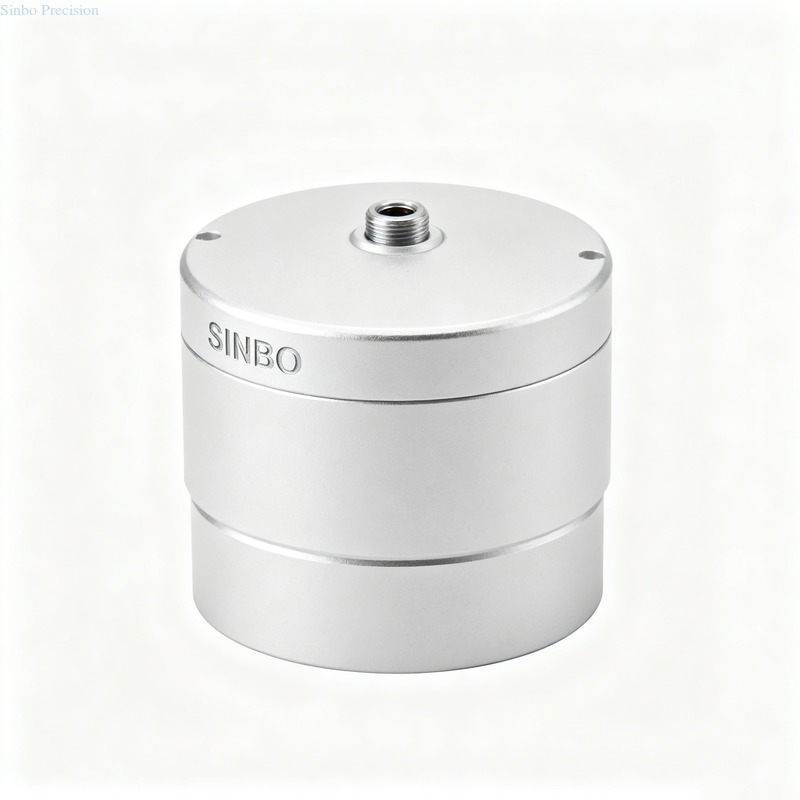

Radiation Resistant Camera Housing for Nuclear Robots CNC Machining China Custom Shielded
Product Description
This Radiation-Resistant Camera Housing is a mission-specific module designed for (explosion-proof/rescue/space) operating in high-radiation environments. It provides robust protection for vision systems, ensuring stable performance of image sensors and optical components under intense radiation. The housing is constructed with stainless steel and composite materials, integrated with radiation shielding layers. It is suitable for nuclear power plants, radioactive laboratories, and disaster rescue scenarios.
Features
- High Radiation Tolerance: Withstands total radiation doses up to 1500 Gy (⁶⁰Co), effectively shielding against γ-rays and neutron radiation;
- Environmental Adaptability: IP65 rating, corrosion-resistant, dustproof, and waterproof for indoor/outdoor harsh environments;
- Rugged Structure: Made from mechanically polished 304 stainless steel (Ra0.8), offering impact and vibration resistance;
- Thermal Management: Built-in active temperature control (heater and fan) for reliable operation from -40°C to 60°C;
- Optical Compatibility: Supports C-mount lenses and quartz glass windows with high light transmission and radiation resistance;
- Lightweight & Modular: Allows quick disassembly and sensor module interchange, easy integration into various robot platforms.
Technical Parameters
| Parameter | Value |
|---|---|
| Radiation Resistance | ≥1500 Gy (⁶⁰Co) |
| Protection Grade | IP65 (IP68 customizable) |
| Housing Material | 304 Stainless Steel (mechanical polishing) |
| Window Material | Quartz Glass |
| Operating Temperature | -40°C to 60°C |
| Communication | PoE (Power over Ethernet) |
| Weight | ≈3.2 kg |
| Mounting | Compatible with pan-tilt units |
Applications
- Monitoring and inspection in nuclear reactor environments;
- Radioactive material handling and lab supervision;
- Spacecraft external inspection and vision systems in radiation-rich space environments;
- Disaster rescue robots (EOD, firefighting, earthquake search);
- Chemical plant inspection and explosion-proof monitoring.
Customization Services
We offer full customization:
- Size and structural adaptation (e.g., pan-tilt integration, heat dissipation optimization);
- Enhanced radiation shielding (up to 10⁶ rads);
- Sensor interface compatibility (IR, LiDAR, multispectral);
- Small to large-batch CNC precision machining, alternative materials (e.g., titanium alloy, composites).
Support and Services
- 3-year warranty and lifelong maintenance;
- 24/7 technical support response;
- FEM simulation reports and radiation testing certification provided;
- Global logistics and on-site installation guidance available.
