Precision CNC Machining China Beryllium Copper Mold Insert Custom CNC Machined Parts
| MOQ: | 100 |
| Price: | 10-20 |
| Payment Terms: | L/C,D/A,D/P |
Detail Information
Test Equipment:
Japan Keyence IM7000
Material Capabilities:
Stainless Steel
Diameter:
0.325inch, 0.13inch
Oem Service:
Acceptable
Size:
Customized
Quality:
100% Inspection
Coaxiality:
±0.01mm
Processing:
CNC Machining,CNC Milling,CNC Turning
Service:
OEM/ODM/Customized/Design
Design Software:
Pro/E, Solidworks, UG
Type:
Drilling,Other Machining Services
Delivery Port:
Shanghai
Parallelism Tolerance:
±0.02mm
Warranty:
1 Year
Casting Method:
Die Casting
Delivery Time:
5-9
Supply Ability:
10000
Highlight:
beryllium copper mold insert
,custom CNC machined parts
,precision CNC machining China
Product Description

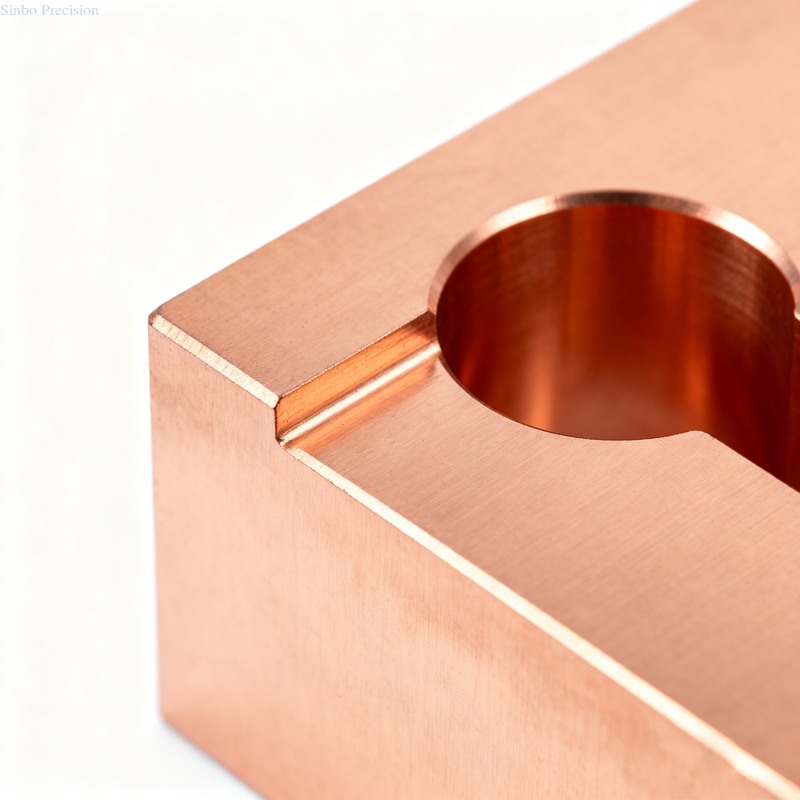

Precision CNC Machining China Beryllium Copper Mold Insert Custom CNC Machined Parts
Beryllium copper mold inserts are high-performance copper alloy machined parts manufactured through precision CNC machining processes. These inserts exhibit exceptional thermal conductivity and high strength, making them ideal for injection molds, die-casting molds, and other applications where efficient heat dissipation and durability are critical. As key components in mold systems, beryllium copper inserts optimize thermal management, reduce product deformation, and shorten molding cycles, thereby significantly improving production efficiency.
Features
- High Thermal Conductivity: Thermal conductivity is 2.3 times higher than ordinary steel, enabling rapid heat transfer and effective mold temperature control.
- High Hardness and Wear Resistance: Heat-treated hardness reaches HRC 36-43, providing excellent wear resistance and fatigue strength.
- Excellent Corrosion Resistance: Suitable for processing corrosive plastics like PVC, resistant to molten metal erosion.
- Superior Polishing Performance: Capable of achieving mirror-like surface finishes for high-gloss mold cavities.
- Anti-sticking Properties: Minimal adhesion to plastic materials, reducing cleaning and maintenance time.
- Non-magnetic and Spark-free: Suitable for explosive environments and non-magnetic applications.
Technical Parameters
| Parameter | Technical Specification | Test Standard |
|---|---|---|
| Material Grade | C17200, C17300, C17500 | ASTM B194 |
| Hardness | HRC 36-43 | ASTM E18 |
| Density | 8.3-8.6 g/cm³ | ASTM B311 |
| Thermal Conductivity | 105-130 W/m·K | ASTM E1461 |
| Electrical Conductivity | 18-22% IACS | ASTM B193 |
| Tensile Strength | 1250-1500 MPa | ASTM E8 |
| Beryllium Content | 1.9%-2.15% | ASTM E54 |
| Operating Temperature | -200℃ to +400℃ | MIL-DTL-28838 |
Applications
- Injection Molds: Mold cores, inserts, hot runner systems, nozzles for improved cooling efficiency
- Die-casting Molds: Punches, cavities, runner components resistant to molten metal erosion
- Blow Molds: Complete cavities for enhanced surface quality
- Automotive Molds: Wear plates, forming components for extended mold life
- Electronics Industry: Non-magnetic tools, shielding materials, connectors
- Aerospace: High thermal conductivity bearings, corrosion-resistant parts
Customization Services
We provide comprehensive custom machining services based on customer drawings or samples. We support processing of various complex geometric shapes while strictly maintaining dimensional accuracy and surface quality. Material certification and SGS test reports are provided to ensure products meet industry standards.
Support and Services
- Technical Support: Mold design optimization suggestions and solutions
- Quality Assurance: Material certificates and SGS reports provided
- Fast Delivery: Standard specifications available from stock, special customization within one week
- After-sales Service: Complete technical support and customer service team
